大家好，
这个问题我已经卡了好几个小时，恳请协助，因为我找不到可行的解决方案。
由于有多个容器托管 Web 服务，我需要自行部署 Nginx 来将流量代理到正确的容器。（我可以简单地将 Discourse 迁移到独立的服务器，但这只是最后的手段，如果无法解决此问题再考虑。）
我目前使用的配置如下：
- Nginx-Proxy - jwilder/nginx-proxy - Docker Image
- Nginx-Proxy/Acme-companion - GitHub - nginx-proxy/acme-companion: Automated ACME SSL certificate generation for nginx-proxy · GitHub

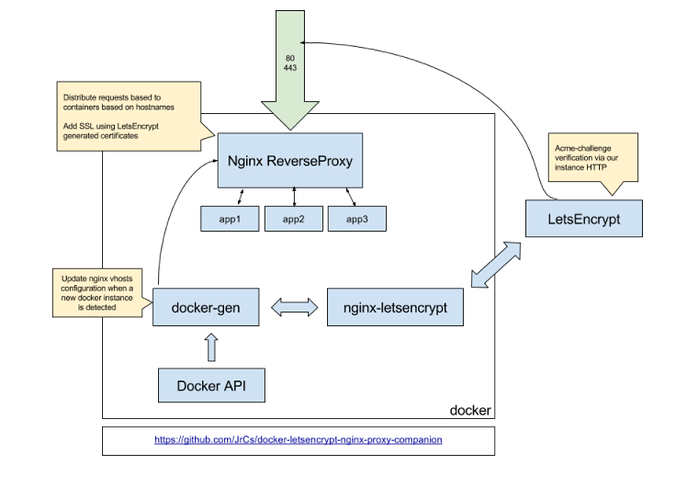

关于这些组件如何协同工作的良好示意图，可以参考以下页面：
我参考了以下教程，它们很有帮助，但我仍未成功。
- How to Install Multiple Discourse Forums on the Same Server
- Use Nginx-Proxy and LetsEncrypt Companion to Host Multiple Websites - Singular Aspect
我之前找到的 Discourse 相关讨论帖（2 年以上）包括：
我的 Discourse app.yml 包含以下内容（域名和邮箱已脱敏）：
docker_args:
- "--net nginx-proxy"
VIRTUAL_HOST: {domain}
VIRTUAL_PORT: 80
LETSENCRYPT_HOST: {domain}
LETSENCRYPT_EMAIL: {email address}
我在下面的示例中注释掉了暴露的端口。我尝试了多种变体，也看到了许多不同的提交示例。例如，这篇帖子的评论：https://meta.discourse.org/t/discourse-with-jwilder-nginx-proxy-howtos/94604，或者在其他地方我看到它被注释掉并在 Docker 变量中指定为 VIRTUAL_PORT。我对这部分有些困惑。
#expose:
# - "80"
我所有的容器都在同一个网络上，例如：
docker network inspect nginx-proxy
[
{
"Name": "nginx-proxy",
"Id": "d2715f513771f002711521838340b879bb9106ef50118fb29be6b0cf2d5f25e7",
"Created": "2022-02-01T20:32:10.021632263Z",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": {},
"Config": [
{
"Subnet": "172.18.0.0/16",
"Gateway": "172.18.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"0b6296ccf7e31b67caf0d31ccc5485e30bd6f1746ceee7e6ce29617b892178cd": {
"Name": "app",
"EndpointID": "1cea3782ef9dea3cf0066add142121f569682c74ff8faa6b19813035eff8998c",
"MacAddress": "02:72:f8:ee:03:32",
"IPv4Address": "172.18.0.4/16",
"IPv6Address": ""
},
"975ea34d56a65b722aa5e83b99f71039fd687b1aee4e8d4df3cb192b1d35c043": {
"Name": "nginx-proxy",
"EndpointID": "bc7a0b4602614be516ee0ceb1c4edf923b91bf7a6528c013157180a98d435807",
"MacAddress": "02:42:ac:12:00:02",
"IPv4Address": "172.18.0.2/16",
"IPv6Address": ""
},
"e299a734584a765dbc10102a5bc9b0d0c98ac6096b6ae75dd1169105893e40af": {
"Name": "letsencrypt-proxy",
"EndpointID": "6b3588359ac4eec02618d3a7438d2750cb6e1c3d1cb6e1a8ce6378c568358a50",
"MacAddress": "02:42:ac:12:00:03",
"IPv4Address": "172.18.0.3/16",
"IPv6Address": ""
}
},
"Options": {},
"Labels": {}
}
]

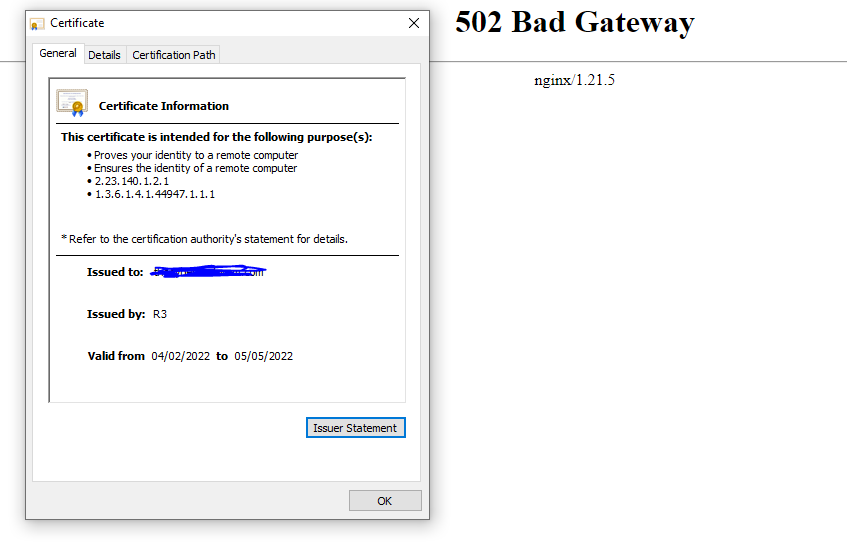

我的证书已成功生成，如下所示，但我目前收到 502 错误。
尝试通过查看 Discourse 容器上的 Nginx 日志进行调试时，日志文件已生成，但没有内容填充：
root@ubuntu-vm-dev-app:/var/log/nginx# ls -lt
total 692
-rw-r--r-- 1 www-data www-data 0 Feb 4 07:23 access.letsencrypt.log
-rw-r--r-- 1 www-data www-data 0 Feb 4 07:23 error.letsencrypt.log
-rw-r--r-- 1 www-data www-data 0 Feb 4 07:23 error.log
-rw-r--r-- 1 www-data www-data 0 Feb 1 23:04 access.log
-rw-r--r-- 1 www-data www-data 700917 Jan 31 23:48 error.log.1
-rw-r--r-- 1 www-data www-data 0 Jan 31 22:55 access.letsencrypt.log.1
-rw-r--r-- 1 www-data www-data 0 Jan 31 22:55 error.letsencrypt.log.1

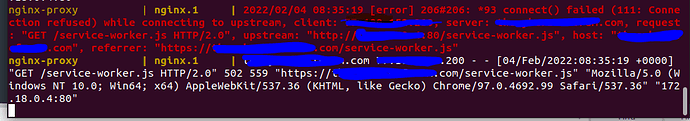

我的 Docker 日志显示以下内容，这似乎是到目前为止最有用的信息（我已移除公共 IP 和域名）：
nginx-proxy | nginx.1 | 2022/02/04 08:35:04 [error] 206#206: *93 connect() failed (111: Connection refused) while connecting to upstream, client: {REDACTED_PUBLIC_IP}, server: {MY_FORUM_DOMAIN}.com, request: "GET / HTTP/2.0", upstream: "http://172.18.0.4:80/", host: "{MY_FORUM_DOMAIN}.com"
nginx-proxy | nginx.1 | {MY_FORUM_DOMAIN}.com {REDACTED_PUBLIC_IP} - - [04/Feb/2022:08:35:04 +0000] "GET / HTTP/2.0" 502 559 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.99 Safari/537.36" "172.18.0.4:80"
nginx-proxy | nginx.1 | 2022/02/04 08:35:06 [error] 206#206: *93 connect() failed (111: Connection refused) while connecting to upstream, client:{REDACTED_PUBLIC_IP}, server: {MY_FORUM_DOMAIN}.com, request: "GET /service-worker.js HTTP/2.0", upstream: "http://172.18.0.4:80/service-worker.js", host: "{MY_FORUM_DOMAIN}.com", referrer: "https://{MY_FORUM_DOMAIN}.com/service-worker.js"
nginx-proxy | nginx.1 | {MY_FORUM_DOMAIN}.com {REDACTED_PUBLIC_IP} - - [04/Feb/2022:08:35:06 +0000] "GET /service-worker.js HTTP/2.0" 502 559 "https://{MY_FORUM_DOMAIN}.com/service-worker.js" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.99 Safari/537.36" "172.18.0.4:80"
nginx-proxy | nginx.1 | 2022/02/04 08:35:19 [error] 206#206: *93 connect() failed (111: Connection refused) while connecting to upstream, client:{REDACTED_PUBLIC_IP}, server: {MY_FORUM_DOMAIN}.com, request: "GET /service-worker.js HTTP/2.0", upstream: "http://172.18.0.4:80/service-worker.js", host: "{MY_FORUM_DOMAIN}.com", referrer: "https://{MY_FORUM_DOMAIN}.com/service-worker.js"
nginx-proxy | nginx.1 | {MY_FORUM_DOMAIN}.com{REDACTED_PUBLIC_IP} - - [04/Feb/2022:08:35:19 +0000] "GET /service-worker.js HTTP/2.0" 502 559 "https://{MY_FORUM_DOMAIN}.com/service-worker.js" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.99 Safari/537.36" "172.18.0.4:80"
我已确认通过容器/app.yml 文件中指定的端口与 Discourse 容器的通信是正常的。例如，我登录到 Discourse 容器并在端口 80 上运行 netcat，然后从浏览器发起请求。
root@ubuntu-vm-dev-app:/var/log/nginx# netcat -lnvp 80
Ncat: Version 7.80 ( https://nmap.org/ncat )
Ncat: Listening on :::80
Ncat: Listening on 0.0.0.0:80
Ncat: Connection from 172.18.0.2.
Ncat: Connection from 172.18.0.2:48776.
GET / HTTP/1.1
Host: {REDACTED_HOST}.com
Connection: close
X-Real-IP: {REDACTED_PUBLIC-IP}
X-Forwarded-For: {REDACTED_PUBLIC-IP}
X-Forwarded-Proto: https
X-Forwarded-Ssl: on
X-Forwarded-Port: 443
cache-control: max-age=0
sec-ch-ua: " Not;A Brand";v="99", "Google Chrome";v="97", "Chromium";v="97"
sec-ch-ua-mobile: ?0
sec-ch-ua-platform: "Windows"
upgrade-insecure-requests: 1
user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.99 Safari/537.36
accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
sec-fetch-site: none
sec-fetch-mode: navigate
sec-fetch-user: ?1
sec-fetch-dest: document
accept-encoding: gzip, deflate, br
accept-language: en-US,en;q=0.9
cookie: _t=azl2WkpyN1hgbENOd3pyZ1d6V3ZXUT....
root@ubuntu-vm-dev-app:/var/log/nginx#
以下是来自 nginx-proxy 容器生成的 Nginx 配置示例：
root@975ea34d56a6:/etc/nginx/conf.d# cat default.conf
# nginx-proxy version : 0.10.0-11-g42c8b0c
# If we receive X-Forwarded-Proto, pass it through; otherwise, pass along the
# scheme used to connect to this server
map $http_x_forwarded_proto $proxy_x_forwarded_proto {
default $http_x_forwarded_proto;
'' $scheme;
}
# If we receive X-Forwarded-Port, pass it through; otherwise, pass along the
# server port the client connected to
map $http_x_forwarded_port $proxy_x_forwarded_port {
default $http_x_forwarded_port;
'' $server_port;
}
# If we receive Upgrade, set Connection to "upgrade"; otherwise, delete any
# Connection header that may have been passed to this server
map $http_upgrade $proxy_connection {
default upgrade;
'' close;
}
# Apply fix for very long server names
server_names_hash_bucket_size 128;
# Default dhparam
ssl_dhparam /etc/nginx/dhparam/dhparam.pem;
# Set appropriate X-Forwarded-Ssl header based on $proxy_x_forwarded_proto
map $proxy_x_forwarded_proto $proxy_x_forwarded_ssl {
default off;
https on;
}
gzip_types text/plain text/css application/javascript application/json application/x-javascript text/xml application/xml application/xml+rss text/javascript;
log_format vhost '$host $remote_addr - $remote_user [$time_local] '
'"$request" $status $body_bytes_sent '
'"$http_referer" "$http_user_agent" '
'"$upstream_addr"';
access_log off;
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers 'ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384';
ssl_prefer_server_ciphers off;
resolver 127.0.0.11;
# HTTP 1.1 support
proxy_http_version 1.1;
proxy_buffering off;
proxy_set_header Host $http_host;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $proxy_connection;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $proxy_x_forwarded_proto;
proxy_set_header X-Forwarded-Ssl $proxy_x_forwarded_ssl;
proxy_set_header X-Forwarded-Port $proxy_x_forwarded_port;
# Mitigate httpoxy attack (see README for details)
proxy_set_header Proxy "";
server {
server_name _; # This is just an invalid value which will never trigger on a real hostname.
server_tokens off;
listen 80;
access_log /var/log/nginx/access.log vhost;
return 503;
}
server {
server_name _; # This is just an invalid value which will never trigger on a real hostname.
server_tokens off;
listen 443 ssl http2;
access_log /var/log/nginx/access.log vhost;
return 503;
ssl_session_cache shared:SSL:50m;
ssl_session_tickets off;
ssl_certificate /etc/nginx/certs/default.crt;
ssl_certificate_key /etc/nginx/certs/default.key;
}
# {REDACTED_DOMAIN}.com
upstream {REDACTED_DOMAIN}.com {
## Can be connected with "nginx-proxy" network
# app
server 172.18.0.4:80;
}
server {
server_name {REDACTED_DOMAIN}.com;
listen 80 ;
access_log /var/log/nginx/access.log vhost;
# Do not HTTPS redirect Let'sEncrypt ACME challenge
location ^~ /.well-known/acme-challenge/ {
auth_basic off;
auth_request off;
allow all;
root /usr/share/nginx/html;
try_files $uri =404;
break;
}
location / {
return 301 https://$host$request_uri;
}
}
server {
server_name {REDACTED_DOMAIN}.com;
listen 443 ssl http2 ;
access_log /var/log/nginx/access.log vhost;
ssl_session_timeout 5m;
ssl_session_cache shared:SSL:50m;
ssl_session_tickets off;
ssl_certificate /etc/nginx/certs/{REDACTED_DOMAIN}.com.crt;
ssl_certificate_key /etc/nginx/certs/{REDACTED_DOMAIN}.com.key;
ssl_dhparam /etc/nginx/certs/{REDACTED_DOMAIN}.com.dhparam.pem;
ssl_stapling on;
ssl_stapling_verify on;
ssl_trusted_certificate /etc/nginx/certs/{REDACTED_DOMAIN}.com.chain.pem;
add_header Strict-Transport-Security "max-age=31536000" always;
include /etc/nginx/vhost.d/default;
location / {
proxy_pass http://{REDACTED_DOMAIN}.com;
}
}
```\n
我只是想知道是否有人成功解决了这个问题？或者对于调试我收到的 502 错误有什么建议？我知道这个错误可能由多种变量引起，但如果您在配置 Discourse 或类似设置时遇到过这个问题，您的解决方案可能会对我有所帮助。
谢谢。
