Support for Embeting AR content like USDZ files with Apple Quick Look

feature
1

Today file upload support these file types:
jpg, jpeg, png, gif, pdf, csv, gz, json, svg, mp4, txt, docx, mov, tex, zip, webm, heic, heif)

Is it possible to add USDZ (augmented reality file for Iphone) as a supportet file type? And Embet it with quick look?

…and maby glTF (android)

It comes usefull in a discourse forum for 3D cad modeling.

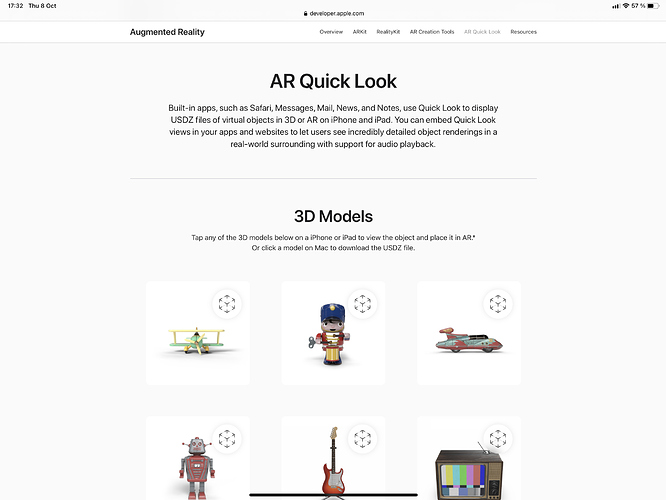

image2732×2048 402 KB

4

Testing it with this cool speaker from https://gear.bethesda.net/products/t-51-power-armor-speaker:

The markup:

Uploaded file via composer: [t51-helmet.usdz|attachment](upload://jFx1C6poHlvJtfHUSK4TLCQ1I8P.usdz)
![image|333x500](upload://qQegjCDy8rUuyvmMRaWpXCxSFHz.jpeg)

Linked image with HTML:

<a href="https://meta.discourse.org/uploads/short-url/jFx1C6poHlvJtfHUSK4TLCQ1I8P.usdz">
<img src="https://d11a6trkgmumsb.cloudfront.net/original/3X/b/c/bc1ff8b759367e3ebc904966a3820743cb3f1c11.jpeg" alt="image" class="resizable" width="333" height="500">
</a>

becomes

Uploaded file via composer: t51-helmet.usdz

Linked image with HTML:

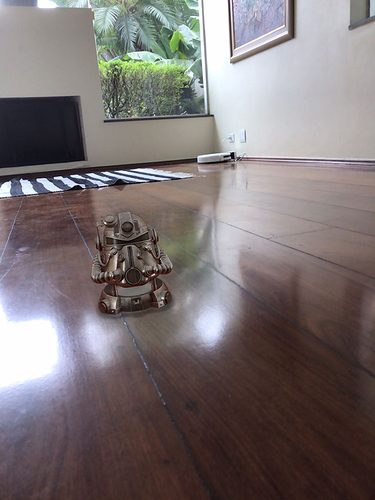

Works on my iPad:

image960×1280 187 KB

So it already kinda works if you enable the usdz extension on your site settings!

To make the user experience our TODOs here would be:

Serve .usdz with the proper MIME-type which is model/vnd.usdz+zip.

Allow list the attribute rel="ar" in a elements.

Auto add rel="ar" for .usdz uploads.

2 and 3 can be hacked using a theme-component, 1 needs core support.

That being said:

Looks like it would be easier to package this web component https://modelviewer.dev/ as a Discouse theme-component and it would be a cross-platform thing for everyone.
