Using Google's 'tachometer' to measure JS performance changes in Discourse

documentation developers
1

When working on client-side work in Discourse core/plugins/themes, it’s important to consider the performance impact. Google’s ‘Tachometer’ project provides a statistically rigorous benchmarking tool which we can use to definitively measure the effect of changes.

Essentially, this tool takes a list of URLs and loads them in a ‘round-robin’ fashion. For each page load, it takes some performance measurement. After hundreds/thousands of iterations, it produces a comparison table.

The beauty of this ‘round-robin’ approach is that it helps to reduce the impact of external factors on measurements.

Step 1: Add performance.measure()

The approach here will vary based on what you’re testing. But fundamentally: you need to introduce a performance.measure() value for Tachometer to read.

For some recent work on boot/render performance, I added a start point on line 6 of discourse-boot.js

performance.mark("start-point");

And then at the top of topic-list.hbs I added

<p elementtiming="end-point">End point</p>

The time between these two events should give us a pretty good indication of boot/render performance.

To tie them together into a performance.measure, I added this instance initializer:

// discourse/app/instance-initializers/setup-measurement.js

export default {
   initialize() {
     const observer = new PerformanceObserver(this.handleObserver);
     observer.observe({ type: "element", buffered: true });
   },

   handleObserver(list) {
     list
       .getEntries()
       .filter((e) => e.identifier === "end-point")
       .forEach((entry) => {
         performance.measure("boot-to-render", {
           start: "start-point",
           end: entry.startTime,
         });
       });
   },
 };

Now we have a boot-to-render measurement which tachometer can pick up. You can check it’s working using the performance tab in your browser dev tools:

SCR-20230815-oewa
SCR-20230815-oewa1320×246 21.7 KB

If you’re trying to measure an activity which requires user interaction (e.g. opening a menu), you could achieve this by adding something like this in an initializer to click the button 1 second after the page is loaded:

setTimeout(() => document.querySelector(".my-button").click(), 1000)

Step 2: Identify URLs for testing

Firstly, make sure that you are building Ember assets in production mode. This can be achieved by launching the server with EMBER_ENV=production.

To obtain two different URLs, there are two main approaches:

If your change is small enough to be easily feature-flagged, then you could add logic to toggle it based on a URL query parameter. Then your two urls could be

http://localhost:4200?flag=before
http://localhost:4200?flag=after

If the change is too large for that, then you could clone Discourse into a second directory and launch a second copy of ember-cli. It can be proxied to the same Rails server using a command like

EMBER_ENV=production bin/yarn-app ember serve --port 4201 --proxy http://localhost:3000

And then your two URLs would be

http://localhost:4200
http://localhost:4201

If you take this approach, make sure that both copies of the app have the performance telemetry you introduced in step 1 of this guide

Step 3: Configure Tachometer

This is my bench.json file, which will take 300 samples of each target:

{
   "timeout": 5,
   "sampleSize": 300,
   "benchmarks": [
     {
       "measurement": {
         "mode": "performance",
         "entryName": "boot-to-render"
       },
       "expand": [
         {
           "url": "http://localhost:4200",
           "name": "before"
         },
         {
           "url": "http://localhost:4201",
           "name": "after"
         }
       ]
     }
   ]
 }

Step 4: Run benchmark

To reduce noise, stop any unrelated activities on your workstation, and then start the benchmark with a command like:

npx tachometer@latest --config ./bench.json

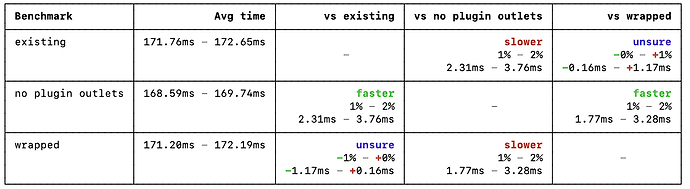

When complete, you should see a comparison of the before/after performance.

image1500×412 98.9 KB

Caveats

As with any experiments like this, it’s worth considering the limitations. For example:

  • Performance differences on your development workstation may not map directly onto other browsers/devices

  • The boot process of Discourse through the Ember-CLI proxy is not exactly the same as it is in production. When making structural changes (e.g. framework updates) this may be important

  • Performance often varies based on application state (e.g. the number of topics being rendered), so your results may not be exactly reproducible in other environments
