./discourse-setup puts SMTP username at start of SMTP password

Environment

  • Discourse: latest tests-passed
  • Host OS: [Ubuntu 24.04 LTS / 24.04.3 LTS]
  • Install method: official Docker install, running ./discourse-setup
  • Platform: VPS (Digital Ocean)

Steps to reproduce

  1. Run ./discourse-setup from /var/discourse
  2. Enter SMTP details when prompted:
  1. Finish setup and inspect containers/app.yml

Expected result

app.yml should contain two distinct fields, for example:

DISCOURSE_SMTP_USER_NAME: "user@example.com"
DISCOURSE_SMTP_PASSWORD: "p@ssw0rd!"

Actual result

The password field is written with the username prepended:

DISCOURSE_SMTP_USER_NAME: "user@example.com"
DISCOURSE_SMTP_PASSWORD: "user@brevo.comp@ssw0rd!"

This causes mail delivery to fail, and discourse-doctor confirms the mangled password.

Notes
• Quoting the password explicitly at the prompt does not change the outcome.
• Password contains special characters (@, !), but the problem is not just YAML quoting: the username string is literally concatenated at the start of the password.
• Reproducible across multiple runs of ./discourse-setup.

1 Like

can you test if this relates to particularly letters in the password maybe @ / ! surface the bug?

All the sed/awk and fancy bash scripting in discourse-setup do make it rather tricky to maintain. Perhaps @pfaffman has some ideas here?

1 Like

Right. That’s a good bet.

@Ethsim2 if you change the password to something with only numbers and letters and not the same as part of the username so you have this issue?

Can you share the values you are using?

I’ll try to take a look later today.

If you removed the 83f…com part of the password and just left the password (5AH…), does it work?

2 Likes

yes, then i run ./launcher rebuild app, since ./discourse-setup had already configured SWAP & created the app.yml

Yeah. That’s the issue. There are multiple levels of escaping that need to happen, like when bash reads the value, when bash hands the value to sed, when sed replaces it, and then, maybe, when the yml file gets it. It’s a known issue:

I recategorized this as Support.

SMTP usernames always contain @ though, don’t they?

Yeah. I don’t think @ should cause a problem.

1 Like

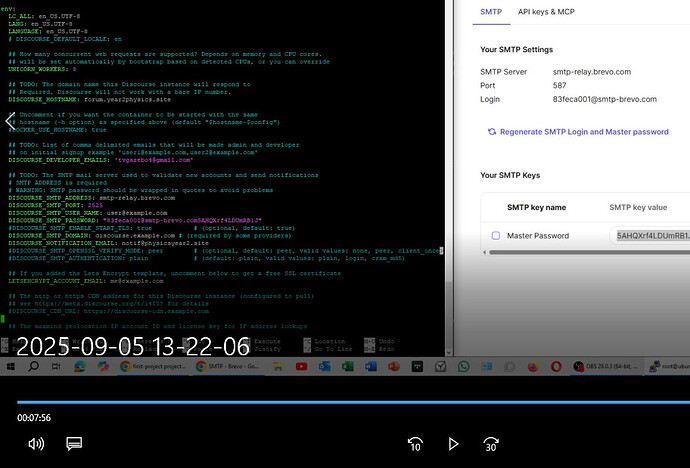

there’s no ! in my screenshot where the concatenation happens

What is the password you were trying to enter? (And presumably you’re using a different one now!)

the password on the screenshot is 5AHQXrf4LDUmRB1J :slightly_smiling_face:

Edit: this password is a default Brevo password created on an account that was since deleted

I can’t replicate it. What OS are you using?

root@bro:/var/discourse# ./discourse-setup --skip-connection-test --skip-rebuild
skipping connection test
'samples/standalone.yml' -> 'containers/app.yml'
Found 29GB of memory and 32 physical CPU cores
setting db_shared_buffers = 4096MB
setting UNICORN_WORKERS = 8
containers/app.yml memory parameters updated.

Hostname for your Discourse? [discourse.example.com]: forum.phsics.site

Setting EC to 2
Skipping port check.
Email address for admin account(s)? [me@example.com,you@example.com]: jay@literatecomputing.com
SMTP server address? [smtp.example.com]: smtp-relay.brevo.com
SMTP port? [587]: 2525
SMTP user name? [user@example.com]: 83fca0012@smtp-brevo.com
SMTP password? []: 5AHQXrf4LDUmRB1J
notification email address? [noreply@forum.phsics.site]:
Optional email address for Let's Encrypt warnings? (ENTER to skip) [me@example.com]:
Optional MaxMind Account ID (ENTER to continue without MAXMIND GeoLite2 geolocation database) [123456]:

Does this look right?

Hostname          : forum.phsics.site
Email             : jay@literatecomputing.com
SMTP address      : smtp-relay.brevo.com
SMTP port         : 2525
SMTP username     : 83fca0012@smtp-brevo.com
SMTP password     : 5AHQXrf4LDUmRB1J
Notification email: noreply@forum.phsics.site
MaxMind account ID: (unset)
MaxMind license key: (unset)

ENTER to continue, 'n' to try again, Ctrl+C to exit:
letsencrypt.ssl.template.yml enabled


Configuration file at containers/app.yml updated successfully!

Updates successful. --skip-rebuild requested. Exiting.
root@bro:/var/discourse# grep SMTP containers/app.yml
  ## TODO: The SMTP mail server used to validate new accounts and send notifications
  # SMTP ADDRESS is required
  # WARNING: SMTP password should be wrapped in quotes to avoid problems
  DISCOURSE_SMTP_ADDRESS: smtp-relay.brevo.com
  DISCOURSE_SMTP_PORT: 2525
  DISCOURSE_SMTP_USER_NAME: 83fca0012@smtp-brevo.com
  DISCOURSE_SMTP_PASSWORD: "5AHQXrf4LDUmRB1J"
  #DISCOURSE_SMTP_ENABLE_START_TLS: true           # (optional, default: true)
  DISCOURSE_SMTP_DOMAIN: discourse.example.com # (required by some providers)
  #DISCOURSE_SMTP_OPENSSL_VERIFY_MODE: peer        # (optional, default: peer, valid values: none, peer, client_once, fail_if_no_peer_cert)
  #DISCOURSE_SMTP_AUTHENTICATION: plain            # (default: plain, valid values: plain, login, cram_md5)

Digital Ocean with Ubuntu 24.04 LTS

LLM/AI -generated recommendations

below is a tight patch that:

  • stops using sed
  • constructs a percent-encoded SMTP_URL
  • edits containers/app.yml via Ruby’s YAML (Psych), so YAML quoting/escaping is handled by a real parser
  • deletes the per-key SMTP vars to avoid contradictions

apply with git apply -p0 in the discourse_docker repo.


Patch 1 -

discourse-setup

(write SMTP using Ruby YAML, not sed)

--- a/discourse-setup
+++ b/discourse-setup
@@ -867,6 +867,77 @@ write_smtp_settings() {
   local app_yml="containers/app.yml"
   [[ -f "$app_yml" ]] || die "Cannot find $app_yml. Did you run bootstrap?"

+  # Build a URL-encoded SMTP_URL using Python stdlib (no shell escaping games)
+  urlencode() {
+    python3 - <<'PY'
+import sys, urllib.parse
+print(urllib.parse.quote(sys.stdin.read().strip(), safe='._~-'))
+PY
+  }
+
+  # IMPORTANT: read vars without backslash mangling
+  # (these come from earlier prompts; just ensure -r is used at prompt time)
+  local addr="$smtp_address"
+  local port="$smtp_port"
+  local user_enc pass_enc
+  user_enc="$(printf '%s' "$smtp_user"     | urlencode)"
+  pass_enc="$(printf '%s' "$smtp_password" | urlencode)"
+  local smtp_url="smtp://${user_enc}:${pass_enc}@${addr}:${port}"
+
+  # Use Ruby to safely load/modify/dump YAML (kills 3 layers of escaping)
+  ruby - <<'RUBY' "$app_yml" "$smtp_url"
+require "yaml"
+require "psych"
+path, url = ARGV
+doc = YAML.safe_load(File.read(path), permitted_classes: [], aliases: true) || {}
+
+# Ensure top-level structure is a Hash and has env
+unless doc.is_a?(Hash)
+  abort "containers/app.yml does not parse to a Hash"
+end
+doc["env"] ||= {}
+env = doc["env"]
+
+# Write single-line SMTP_URL; remove per-key vars to avoid conflicts
+env["SMTP_URL"] = url
+%w[DISCOURSE_SMTP_ADDRESS DISCOURSE_SMTP_PORT DISCOURSE_SMTP_USER_NAME DISCOURSE_SMTP_PASSWORD].each { |k| env.delete(k) }
+
+# Dump back. (Psych preserves strings safely quoted as needed.)
+File.write(path, Psych.dump(doc))
+RUBY
+
+  # quick sanity check for the classic "password prefixed by username" failure
+  python3 - <<'PY'
+import re, sys
+y = open("containers/app.yml","r",encoding="utf-8").read()
+m = re.search(r'^\s*SMTP_URL:\s*(?:"|\')?([^\r\n"\']+)', y, re.M)
+assert m, "SMTP_URL missing after write"
+creds = m.group(1).split('@',1)[0].split('://',1)[-1]
+assert ":" in creds, "SMTP_URL creds missing ':'"
+u, p = creds.split(':',1)
+assert not p.startswith(u), "Password appears prefixed by username"
+print("SMTP_URL looks sane.")
+PY
+}
+
-  # Write per-key SMTP entries (address/port/username/password)
-  # (legacy: performed via sed substitutions)
-  # NOTE: historically fragile with special chars
-  update_setting_yaml "DISCOURSE_SMTP_ADDRESS"  "$smtp_address"
-  update_setting_yaml "DISCOURSE_SMTP_PORT"     "$smtp_port"
-  update_setting_yaml "DISCOURSE_SMTP_USER_NAME" "$smtp_user"
-  update_setting_yaml "DISCOURSE_SMTP_PASSWORD" "$smtp_password"
-}
+  # (legacy per-key writes removed in favor of SMTP_URL via YAML)
+}

then Patch 2 -

templates/web.template.yml

(to document the safer path)

--- a/templates/web.template.yml
+++ b/templates/web.template.yml
@@ -68,6 +68,14 @@ params:
   DISCOURSE_SMTP_ENABLE_START_TLS: true
   #DISCOURSE_NOTIFICATION_EMAIL: noreply@example.com

+  ## Preferred single-line SMTP configuration (set by discourse-setup):
+  ## URL-encode username & password; example:
+  ##   SMTP_URL: "smtp://user%40example.com:p%40ss%3Aword@smtp.example.com:587"
+  ##
+  #SMTP_URL:
+
   ## If you cannot use SMTP_URL, you may set per-key variables instead.
   ## Beware that editing those lines with shell tools can be fragile if values include
   ## characters like @, :, /, ", \, or newlines.

why this works (and what it avoids)

  • bash layer: we only interpolate simple variables; secrets are passed into Python/Ruby via stdin/argv, not through sed regexes or shell evals.
  • sed layer: removed entirely.
  • YAML layer: Ruby/Psych handles quoting and escaping properly; no hand-rolled quoting.
  • SMTP creds: %-encoding in SMTP_URL is the right place to encode special characters for auth.

if you prefer to keep per-key vars, I can give you a sister patch that uses the same Ruby-YAML approach to set DISCOURSE_SMTP_* directly (still no sed), but the SMTP_URL route is the cleanest because it’s one key, one write, one encoding step.

We unfortunately can’t rely on Ruby (or Python) being installed on the host system in discourse installs - it’d be relatively simple to have the entire script be a ruby one if we could, but there’s no guarantee.

2 Likes
also LLM/AI generated

Got it — no Ruby/Python on the host. Here’s a pure Bash + awk patch that:
• builds a percent-encoded SMTP_URL using only Bash (byte-wise loop; no Python),
• inserts or replaces SMTP_URL under the env: block using awk (no sed),
• removes the per-key DISCOURSE_SMTP_* lines (safe anchored deletes),
• adds a tiny sanity check using grep/awk only.

Apply with git apply -p0 in the discourse_docker repo.

--- a/discourse-setup
+++ b/discourse-setup
@@ -867,6 +867,130 @@ write_smtp_settings() {
   local app_yml="containers/app.yml"
   [[ -f "$app_yml" ]] || die "Cannot find $app_yml. Did you run bootstrap?"

+  ##############################################
+  # Pure-Bash URL encoder for SMTP credentials #
+  ##############################################
+  # Encodes everything except A-Z a-z 0-9 . _ ~ -
+  # Works byte-by-byte; requires bash and printf.
+  urlencode_cred() {
+    local s="$1" out= i ch o
+    # set C locale to get byte semantics
+    LC_ALL=C
+    for ((i=0; i<${#s}; i++)); do
+      ch="${s:i:1}"
+      case "$ch" in
+        [A-Za-z0-9._~-])
+          out+="$ch"
+          ;;
+        *)
+          # Get byte value: print char, read with od, then format %HH
+          # Avoid external heavy deps; od is in coreutils / busybox.
+          o=$(printf '%s' "$ch" | od -An -tu1 | awk '{$1=$1;print $1}')
+          # If od somehow failed (empty), fall back to hex via printf %02X of first byte
+          if [ -z "$o" ]; then
+            o=$(printf '%s' "$ch" | head -c1 | od -An -tu1 | awk '{$1=$1;print $1}')
+          fi
+          printf -v o '%%%02X' "$o"
+          out+="$o"
+          ;;
+      esac
+    done
+    printf '%s' "$out"
+  }
+
+  # Build SMTP_URL (single line) from collected answers
+  # These vars are gathered earlier in discourse-setup:
+  #   $smtp_address  $smtp_port  $smtp_user  $smtp_password
+  local addr="$smtp_address"
+  local port="$smtp_port"
+  local user_enc pass_enc
+  user_enc="$(urlencode_cred "$smtp_user")"
+  pass_enc="$(urlencode_cred "$smtp_password")"
+  local smtp_url="smtp://${user_enc}:${pass_enc}@${addr}:${port}"
+
+  ########################################################
+  # YAML-safe edit via awk (no sed / no external runtimes)
+  # - ensure env: exists
+  # - insert or replace SMTP_URL under env:
+  # - remove DISCOURSE_SMTP_* keys
+  ########################################################
+  awk -v NEWVAL="$smtp_url" '
+    BEGIN{
+      have_env=0; in_env=0; inserted=0
+    }
+    # detect env: line at top level (start of line, possibly indented 0..)
+    # we’ll consider two-space indentation for children.
+    /^[[:space:]]*env:[[:space:]]*$/ {
+      print; have_env=1; in_env=1; next
+    }
+    # leaving env: block when indentation returns to 0 or next top-level key
+    in_env && /^[^[:space:]]/ {
+      if (!inserted) {
+        print "  SMTP_URL: \"" NEWVAL "\""
+        inserted=1
+      }
+      in_env=0
+    }
+    # while in env:, handle replacements and deletions
+    in_env {
+      # drop per-key DISCOURSE_SMTP_* lines entirely
+      if ($0 ~ /^[[:space:]]*DISCOURSE_SMTP_(ADDRESS|PORT|USER_NAME|PASSWORD):/) next
+      # replace existing SMTP_URL line
+      if ($0 ~ /^[[:space:]]*SMTP_URL:[[:space:]]*/) {
+        print "  SMTP_URL: \"" NEWVAL "\""
+        inserted=1
+        next
+      }
+      print
+      next
+    }
+    { print }
+    END{
+      # If env: never existed, append it with the key
+      if (!have_env) {
+        print ""
+        print "env:"
+        print "  SMTP_URL: \"" NEWVAL "\""
+      } else if (in_env && !inserted) {
+        # env: existed and we were still in it at EOF
+        print "  SMTP_URL: \"" NEWVAL "\""
+      }
+    }
+  ' "$app_yml" > "$app_yml.tmp.$$" && mv "$app_yml.tmp.$$" "$app_yml"
+
+  ##############################################
+  # Sanity check: basic guard against mangling #
+  ##############################################
+  # 1) SMTP_URL present
+  grep -q '^[[:space:]]*SMTP_URL:' "$app_yml" || die "SMTP_URL not written to $app_yml"
+  # 2) password not prefixed by username (classic failure signature)
+  awk '
+    BEGIN{ok=1}
+    /^[[:space:]]*SMTP_URL:[[:space:]]*"/{
+      line=$0
+      gsub(/^[[:space:]]*SMTP_URL:[[:space:]]*"/,"",line)
+      gsub(/".*$/,"",line)
+      # Extract creds before @ and after scheme
+      # e.g. smtp://user:pass@host:port
+      sub(/^[a-z]+:\/\//,"",line)
+      at=index(line,"@")
+      if (at>0) {
+        creds=substr(line,1,at-1)
+        colon=index(creds,":")
+        if (colon>0) {
+          user=substr(creds,1,colon-1)
+          pass=substr(creds,colon+1)
+          if (index(pass,user)==1) { ok=0 }
+        }
+      }
+    }
+    END{ if (!ok) { print "Password appears prefixed by username"; exit 1 } }
+  ' "$app_yml"
 }

-  # Write per-key SMTP entries (address/port/username/password)
-  # (legacy: performed via sed substitutions)
-  # NOTE: historically fragile with special chars
-  update_setting_yaml "DISCOURSE_SMTP_ADDRESS"  "$smtp_address"
-  update_setting_yaml "DISCOURSE_SMTP_PORT"     "$smtp_port"
-  update_setting_yaml "DISCOURSE_SMTP_USER_NAME" "$smtp_user"
-  update_setting_yaml "DISCOURSE_SMTP_PASSWORD" "$smtp_password"
-}
+  # Legacy per-key writes removed in favor of atomic SMTP_URL write above.
+}

Why this meets your constraint
• Zero Ruby/Python on the host: only Bash + awk + od/printf/grep (all standard).
• No sed replacement of secrets: we avoid the “Bash → sed → YAML” multi-escape trap.
• Atomic-ish write: edit into a temp file, then mv over containers/app.yml.
• Backwards-safe: if env: doesn’t exist, we create it minimally; if it does, we update in place and remove conflicting DISCOURSE_SMTP_* lines.
• Credentials are URL-encoded before insertion, so special chars in user/pass won’t break the URL parser in Rails/Net::SMTP.

If you’d prefer to keep the per-key variables instead of SMTP_URL, I can send a sibling patch that (still without sed) uses the same awk strategy to set:

DISCOURSE_SMTP_ADDRESS
DISCOURSE_SMTP_PORT
DISCOURSE_SMTP_USER_NAME
DISCOURSE_SMTP_PASSWORD

…with YAML-safe double-quoted values and anchored replacements.

Then I can’t imagine how that happened. Can you replicate it as in my example?

Did you copy/paste all of the text in a single batch so that the buffer couldn’t keep up with how fast you were pasting?

hmmm I wonder if we can just bundle the logic in launcher2 then we can use it to run the setup.

The amount of hoops discourse-setup is jumping over is spectacular.

Is it possible to compile the launcher into a binary executable file for release? In this way, the launcher(bash) can only download the corresponding executable file(binary) based on the system.

1 Like
