Alternative Voting Category Style

This theme component offers alternative styling for any specified categories that make use of the Discourse Voting plugin.

Installation

Repository Link
https://github.com/discourse/discourse-alternative-voting-category-style

If you are unfamiliar with theme components and how to install them, check out the theme installation guide. And if you’d like to learn more about Discourse themes, take a look at this guide.

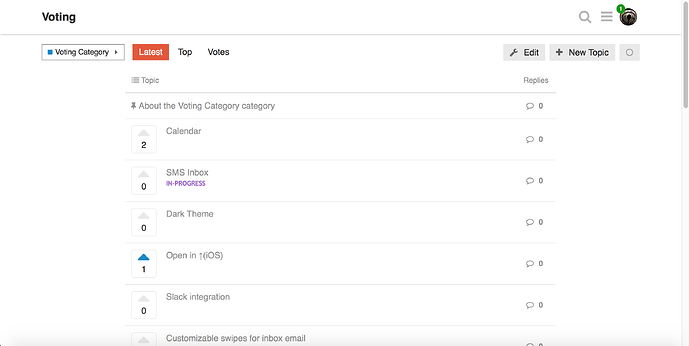

Preview

The overall idea is based off of this mockup created by @erlend_sh.

Notable Features

  • Compact view
  • More prominent vote count
  • Colored icon to indicate that you voted on the topic

Settings

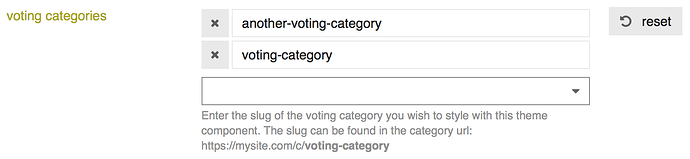

There is currently one setting use to specify which categories to apply the style:

Extra Customizations

If you want to customize the look of specific tags within your voting topic (see the “IN PROGRESS” tag in the preview image above), you can create an additional component and modify the following CSS to fit your needs

.voting-category.list-container {
    .topic-list-item:not(.about-topic) {
        // Common styling for all listed tags
        [data-tag-name="in-progress"],
        [data-tag-name="my-tag-one"],
        [data-tag-name="my-tag-two"] {
            font-weight: bold;
            text-transform: uppercase;
            font-family: Trebuchet MS;
        }
        // Specific styling for individual tags
        [data-tag-name="in-progress"] {
            color: #9e63d0;
        }
        [data-tag-name="my-tag-one"] {
            color: #5bd04a;
        }
        [data-tag-name="my-tag-two"] {
            color: #5f5dd0;
        }
    }
}

Future

The one thing that you may notice missing from the original mockup is an excerpt of the topic under the topic title. This feature would require changes to core or the voting plugin that will need to wait for now.

As always, please let me know if you experience any issues.

Big thanks @simon and @erlend_sh for working with me on this :heart_eyes:

37 « J'aime »

Great theme component! One thing I found was that the unlisted icon is not fitting into your design. The topic title is overlapping it.

03%20AM

8 « J'aime »

Thanks for the quick feedback! I will try to get that fixed a little later today :slightly_smiling_face:

Edit: @Sean_R I just pushed a quick fix. I may try to tinker with it a little more to get it even better, but there shouldn’t be any more overlap!

6 « J'aime »

Looks good now


I also had to change the CSS to make the topic list wider.

Was

.voting-category.list-container {
  max-width: $small-width;

Changed to

.voting-category.list-container {
  max-width: $large-width;
6 « J'aime »

Thanks for confirming that is fixed!

The smaller width was based on the original design. The rationale was that there was so little information displayed on each topic row that it would look odd at full width. I can imagine some people might feel the opposite - that the smaller width looks odd. A width option to toggle via a theme setting would be an easy addition. I’ll add that to my to-do list with this.

5 « J'aime »

This component has been updated! The changes include:

  • Support for font awesome changes
  • Additional setting to toggle between small-width and large-width
6 « J'aime »

Does this component still work?

I use an instance of free.discourse.group and am looking for an alternative for the Discourse Vote Plugin

The component still works, but it is meant to be used alongside the voting plugin, not instead. It only provides an alternative style option for the voting plugin.

3 « J'aime »

Ah, now I get it, thanks for your attention :hugs:

3 « J'aime »

Is somebody still actively using this? Tried it with the current Version of the voting Plugin (0.5), looks pretty good, but doesn’t seem to be functional anymore - at least in our instance.

Can you elaborate on what isn’t functioning? I just tested it out and everything seems to be working. Noting that this component is purely styling right now. You aren’t able to vote directly from the topic list.

2 « J'aime »

thanks for the immediate reply!!!

First

Noting that this component is purely styling right now. You aren’t able to vote directly from the topic list.

Ok, I did not realise that. I thought it would actually allow exactly that: Voting from the topic list. Good to know. Need to reevaluate then.

Second
It does not seem to show the actual data/votes. Two pictures here: one with the style activated and one deactivated.


I suspected a conflict with the theme used, but even using another one, it does not seem to solve the issue.

1 « J'aime »

Hmm I just tested it on an up-to-date site and I’m not having any issues with the vote count or “I voted” indicator:

Can you check to see if there are any errors in your browser’s console? Have you tried with a brand new default theme with no other components or customizations added?

2 « J'aime »

You should be able to add a CSS rule to a theme/component to fix this up. I don’t have the Ratings plugin installed to test this, but I think it should be something like:

.rating-list {
  margin-left: 65px;
}

I’m actually doing some work on this component right now (it hadn’t been touched in a long time!), so I’ll see if I can make it so that any custom topic list content is positioned correctly by default.

3 « J'aime »

Perfect, thank you :ok_hand:

1 « J'aime »

J’ai installé ce composant de thème et je l’ai activé dans deux catégories. L’une semble buggée, l’autre fonctionne bien. La différence est que le nom de la catégorie apparaît dans la liste, chevauchant le nombre de votes. La seule différence à laquelle je peux penser est que la catégorie avec le bug a des sous-catégories, tandis que l’autre n’en a pas.

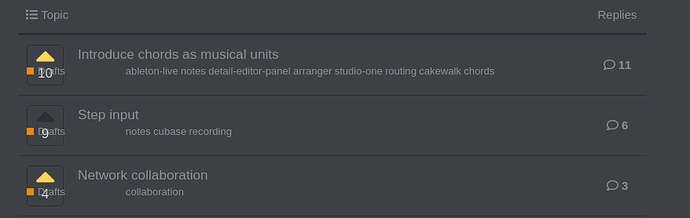

Buggé, avec sous-catégories :

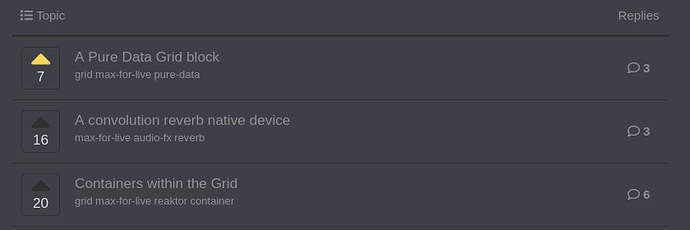

Fonctionne bien, sans sous-catégories :

Si cela peut aider, voici le thème par défaut avec la palette de couleurs Grey Amber.

1 « J'aime »

Merci pour le rapport ! Si vous mettez à jour le composant, vous devriez obtenir la correction suivante :

4 « J'aime »

Merci beaucoup pour cette réaction hyper rapide ! La correction fonctionne.

PS : veuillez ajouter la balise #voting, ce composant est trop beau pour être caché. :slight_smile:

3 « J'aime »

Existe-t-il un composant de thème qui donne au même aspect à l’indicateur de vote sur les sujets individuels ?

1 « J'aime »

Ce composant masque également les colonnes affichant les participants, les vues et le temps d’activité. Il serait peut-être agréable de séparer cela, afin que l’on puisse facilement activer uniquement le changement de style de vote sans masquer également ceux-ci ?

Ou — déplacez

  .posters,
  .views,
  .activity {
    display: none;
  }

à l’intérieur de @if $use_compact_width == \"true\" {
?

2 « J'aime »
